Tci Electronic Transformer DOLPHIN 70W 12V 20-70W Dimmable by trailing edge dimmer

$ 20.01 tax incl.

$ 28.58 tax incl.

30%

119681
8053288368142
TCI
New product

Dimmable electronic transformer (TRAILING EDGE), height 20 mm

Immediate shipment
4 Products in wharehouse

Availability information

Calcola costi spedizione
Download :

Data_sheet_DOLPHIN_TCI

Download (561.01k)
Features :
In short :

Dimmable electronic transformer (TRAILING EDGE), height 20 mm

Description :
  • Special class II, transformer suitable for installation in damp places or in contact with water (such as bathrooms).
  • Independent transformer with Class II protection against electric shock following direct or indirect contact.
  • Opposite input and output terminal blocks.
  • Input terminal blocks with loop possibility on feed.
  • Single terminal block on the 230 V primary circuit (terminal area 2,5 mm2).
  • Double terminal block on the 12 V secondary circuit (terminal area 2,5 mm2).
  • Cable retention by means of a special cable retainer integrated in the transformer base and cover (2x0,75 mm2, H03VVH2-F ribbon cable only).
  • The transformer can be secured with slot for screws.


Protections:

- against overheating and short circuits. - against mains voltage spikes.
- against overloads.

Regulation with TCI dimmer:
DU 250 - TED 700 - TD REG X-DIM.IGBT. 240 V version available upon request.


Assistance :

Need help ?

Contact us now
Frequently asked
Shipping and price

About availability :

-> PRODUCT WITH QUANTITIES INDICATED -> Products are available in our warehouse and are ready for delivery.

-> NO LONGER IN STOCK -> Product is in out of production or no longer available from the supplier .

-> AVAILABLE ON ORDERING -> The products will be ordered from the supplier and if not indicated the waiting times vary from 5 to 15 days

Can't find your answers or information? For international customers there is an available phone number for your questions: +390541657672 , phone operating from 8.30am - 6.30pm monday - friday.

x

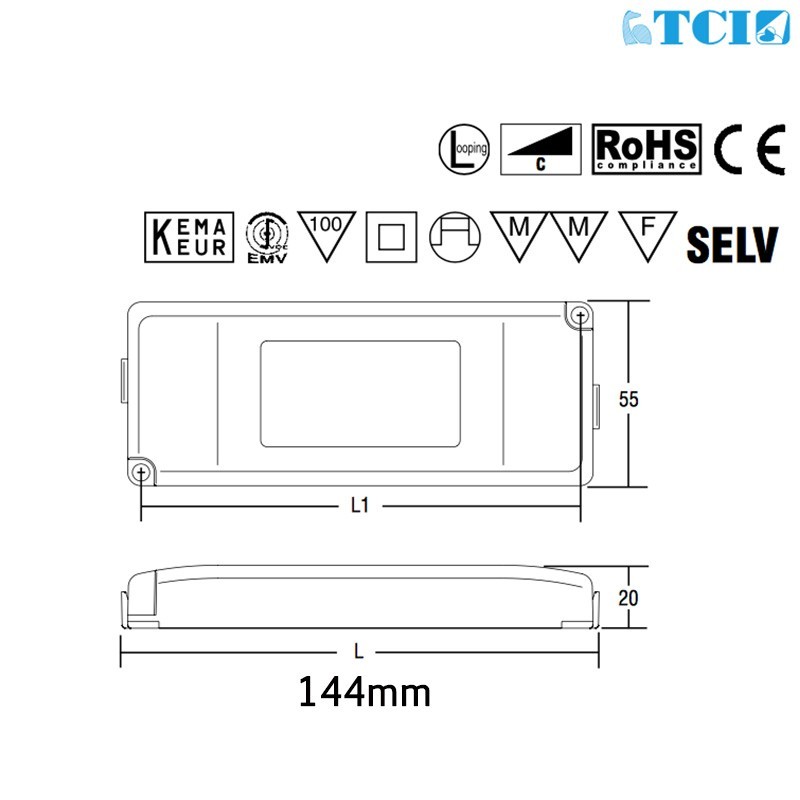

Input voltage220/240 V 50/60 Hz
Output voltage12 VOLT AC
Depth in mm20
Width in mm55
Length in mm144
Degree of protectionIP20
MaterialPvc
Light sourceLED OR HALOGEN
Adjustable powerwith TRAILING EDGE-LEADING EDGE
Product ColorWHITE COLOR
Power output in watts20-70w
Insulation class Insulation class II
