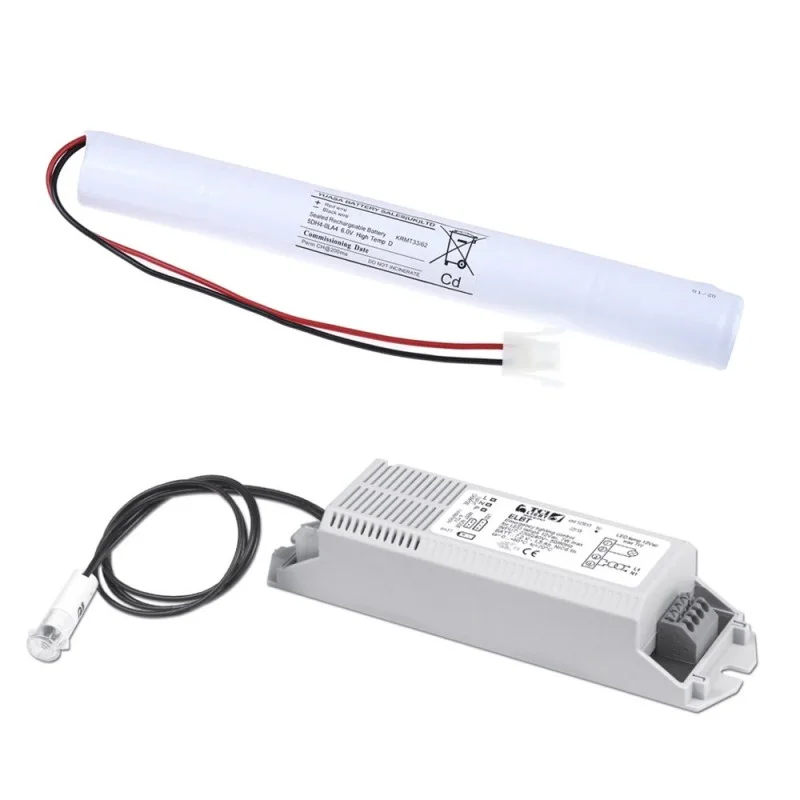

TCI 123013 ELBT Emergency Light Kit for LED Lamps 12Vdc GU5.3

0 reviews
Add your review

$ 91.05 tax incl.

$ 130.07 tax incl.

You Save from the online price list : 30%

article : 123013

ean code : 8058774345560

Supplier : TCI

Condition: New product

The electronic units for emergency lighting series elHt for GU10 230V LED lamps and elBt for GU5,3 12V LED lamp. They can be used indifferently for maintained or emergency operation.

Download :

Datasheet_123013

Download (246.3k)

Features :

In short :

The electronic units for emergency lighting series elHt for GU10 230V LED lamps and elBt for GU5,3 12V LED lamp. They can be used indifferently for maintained or emergency operation.

Description :

It can be used for lighting equipment in protection class I and II. • Instant emergency operation at mains failure.
Maintained or not maintained operation.
Suitable for LED lamps 12 Vac (20 kHz).
High efficiency, minimum heat dispersion and absolute reliability. • “High temperature” Ni-Cd batteries.
Charge indicator with LED.
Protection device against extensive discharge.

TECHNICAL DATA

Length battery cable: 280 mm / 11’’.
Length LED cable: 350 mm / 13,8’’.
LED mounting hole: Ø 9 mm / 0,35’’.
Supply current: 20 mA max.
Push-wire connections max. size: 1,5 mm2 / AWG15.
Max distance between driver and lamp: 2 mt / 6ft.

BATTERY

All Emergency lighting KITS TCI are provided with rechargeable high temperature Ni-Cd Saft batteries. These cells accept a permanent charge for a minimum of 4 years in high-temperature environments (up to +50°C) such as security lighting equipment.

Constant current during charge.
Zero maintenance.
Long cycle life (over 500 charge discharge cycles).
Long term storage (up to 4 months in normal conditions: temperature range from +5°C to +25°C in a 65 % ±5 % relative humidity atmosphere).

Assistance :

Need help ?

About availability :

-> PRODUCT WITH QUANTITIES INDICATED -> Products are available in our warehouse and are ready for delivery.

-> NO LONGER IN STOCK -> Product is in out of production or no longer available from the supplier .

-> AVAILABLE ON ORDERING -> The products will be ordered from the supplier and if not indicated the waiting times vary from 5 to 15 days

Can't find your answers or information? For international customers there is an available phone number for your questions: +390541657672 , phone operating from 8.30am - 6.30pm monday - friday.

Lampholder	Lampholder Gu5.3 12V
Input voltage	220/240 V 50/60 Hz
Output voltage	12 VOLT DC
Depth in mm	30
Width in mm	41
Length in mm	150
Material	Pvc
Light source	LED
Weight in Kg	0.170
Current carrying capacity	20 mA
Autonomy in hours	1
Bulb power	3-7w
