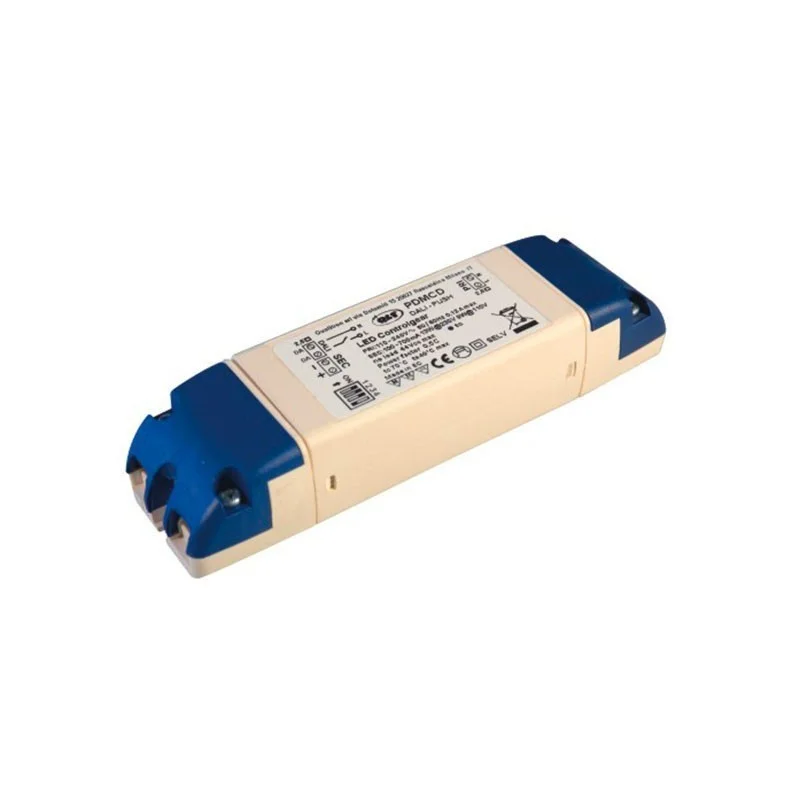

QLT Constant Multi-Current LED Driver Dimmable DALI / PUSH With Low Voltage Button

$ 44.86 tax incl.

A40PDMCD000B
8053306654035
QLT QUALITRON
New product

Dimmable multipower power supply PDMCD Driver for LEDs in constant current from 100mA to 700mA for a maximum of 13W (230V) and 9W (110V). Possibility to adjust the light intensity through DALI or Push system with the use of a simple NA (Normally Open) button.

Immediate shipment
1 Product in wharehouse

Availability information

Calcola costi spedizione
Download :

Data_Sheet_PDMCD

Download (663.62k)
Features :
In short :

Dimmable multipower power supply PDMCD Driver for LEDs in constant current from 100mA to 700mA for a maximum of 13W (230V) and 9W (110V). Possibility to adjust the light intensity through DALI or Push system with the use of a simple NA (Normally Open) button.

Description :

DALI and Push multi-current dimmable LED Controlgear power supply driver.
• Independent power supply - IP20 - Class II of insulation
• Constant current output from 100 to 700mA, programmable with DIP-switches (see diagram)
• A40PDMCD000B: DALI or Button on the primary side
• Self-restoring protection against overheating, against the open circuit and short-circuits on the secondary.
• Power supply in 100V-250V / AC - Stabilized output

Currents selectable via micro switches:
100mA - 150mA - 200mA - 250mA - 300mA - 350mA - 400mA - 450mA - 500mA - 550mA - 600mA - 650mA - 700mA


Assistance :

Need help ?

Contact us now
Frequently asked
Shipping and price

About availability :

-> PRODUCT WITH QUANTITIES INDICATED -> Products are available in our warehouse and are ready for delivery.

-> NO LONGER IN STOCK -> Product is in out of production or no longer available from the supplier .

-> AVAILABLE ON ORDERING -> The products will be ordered from the supplier and if not indicated the waiting times vary from 5 to 15 days

Can't find your answers or information? For international customers there is an available phone number for your questions: +390541657672 , phone operating from 8.30am - 6.30pm monday - friday.

x

Input voltage100-240 V
Depth in mm18,5
Width in mm40
Length in mm138
Degree of protectionIP20
MaterialPvc
Light sourceLED
Adjustable powerWith DALI & Push system
Control systemButton
Constant current output100~700mA
Insulation class Insulation class II
USA JAP compatibleCompatible
