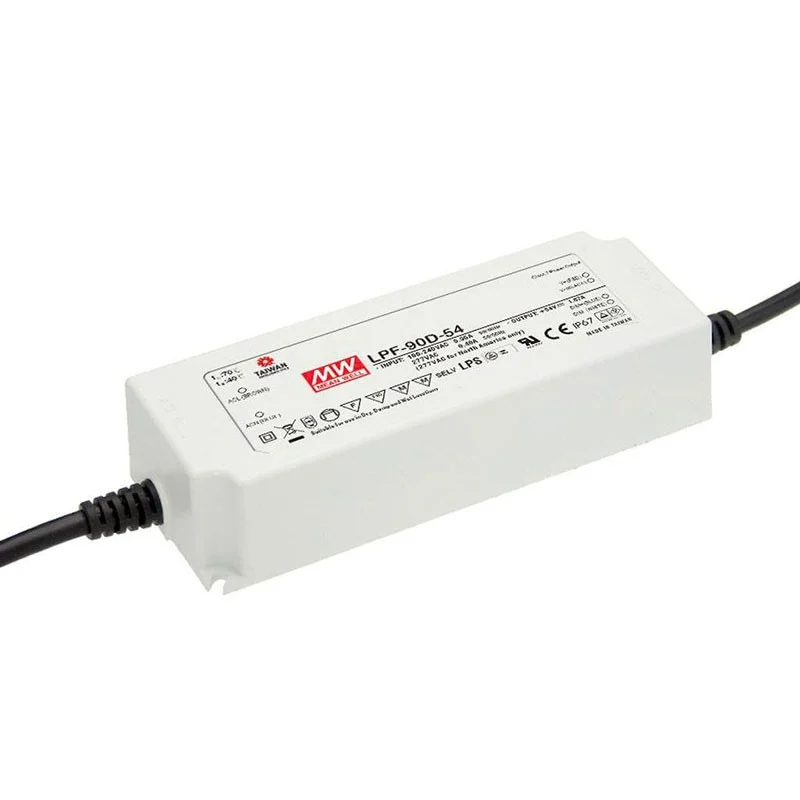

Meanwell Power Supply LPF-90D-54 90W 54V 1.67A IP67 1-10V and PWM Dimmable

$ 66.58 tax incl.

Discount on quantity :
If buy 5 products you save 10%
LPF-90D-54
8053306655766
Mean Well
New product

Power supply unit for LED, Mean Well model LPF-90D-54 with power of 90.18 W from 1.67 A constant voltage of 54 Volts. IP67 protection degree suitable for indoor and outdoor use. 3 in 1 dimmable function with 1 ~ 10VDC or 10V PWM signal.

Immediate shipment
4 Products in wharehouse

Availability information

Calcola costi spedizione
Download :

Data_Sheet_LPF-90D-54

Download (207.99k)
Features :
In short :

Power supply unit for LED, Mean Well model LPF-90D-54 with power of 90.18 W from 1.67 A constant voltage of 54 Volts. IP67 protection degree suitable for indoor and outdoor use. 3 in 1 dimmable function with 1 ~ 10VDC or 10V PWM signal.

Description :

LPF-90D-54 series is a 90.18W LED AC/DC power supply featuring the dual operating modes, constant current mode output and constant voltage mode output with 3 in 1 light dimmer function with 1~10VDC, or 10V PWM signal. LPF-90D operates from 90~305VAC and offers models with voltage of 54V. Thanks to the high efficiency up to 91%, with the fanless design, the entire series is able to operate for -40℃ ~ +90℃ case temperature under free air convection. LPF-90D-54 is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system.

3 in 1 dimming function
‧ Output constant current level can be adjusted by applying one of the three methodologies between DIM+ and DIM-:
1 ~ 10VDC, or 10V PWM signal or resistance.
‧ Direct connecting to LEDs is suggested. It is not suitable to be used with additional drivers.
‧ Dimming source current from power supply: 100μA (typ.)
Features :

Universal AC input / Full range (up to 305VAC)
Built-in active PFC function
High efficiency up to 90.5%
Protections: Short circuit / Over current / Over voltage / Over temperature Cooling by free air convection
Fully isolated plastic case
Fully encapsulated with IP67 level (Note.6)
Class power unit, no FG
Built-in 3 in 1 dimming function (1~10Vdc or PWM signal or resistance)
Suitable for LED lighting and moving sign applications
Compliance to worldwide safety regulations for lighting
Suitable for dry / damp / wet locations
3 years warranty


Assistance :

Need help ?

Contact us now
Frequently asked
Shipping and price

About availability :

-> PRODUCT WITH QUANTITIES INDICATED -> Products are available in our warehouse and are ready for delivery.

-> NO LONGER IN STOCK -> Product is in out of production or no longer available from the supplier .

-> AVAILABLE ON ORDERING -> The products will be ordered from the supplier and if not indicated the waiting times vary from 5 to 15 days

Can't find your answers or information? For international customers there is an available phone number for your questions: +390541657672 , phone operating from 8.30am - 6.30pm monday - friday.

x

Input voltage100-240 V
Output voltage24 VOLT DC
Depth in mm36
Width in mm61
Length in mm161
Degree of protectionIP67
MaterialPvc
Adjustable powerwith 1/10 volt system
VariantLPF-90D-54
Weight in Kg0.7
Current carrying capacity1,67A
Power output in watts90 w
Efficiency %91
USA JAP compatibleCompatible
