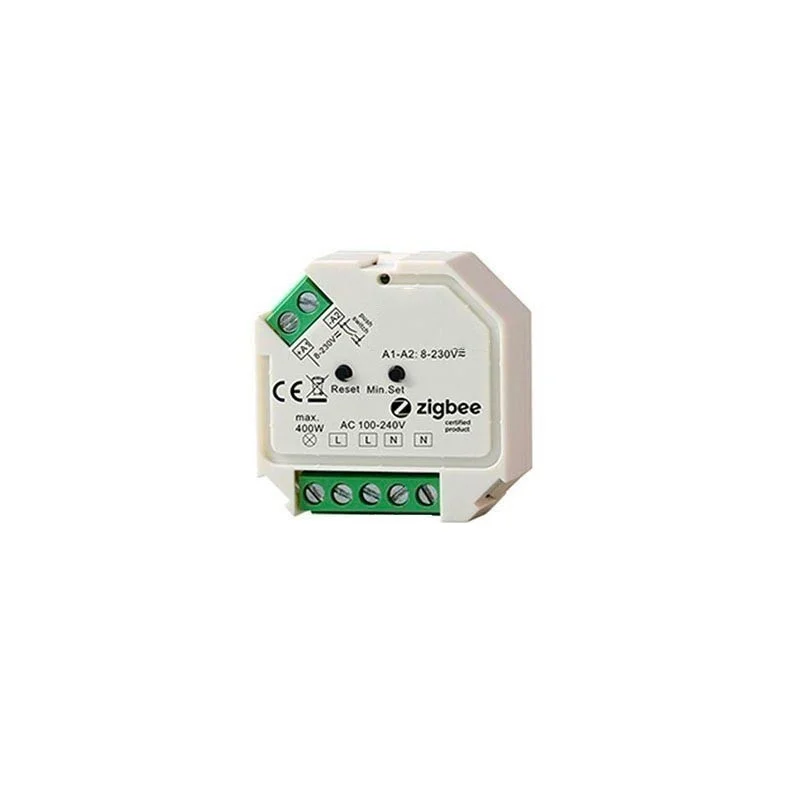

Interface Zigbee 3.0 Intelligent Dimmable Control Trailing Edge Signal Philips Hue Amazon Alexa Google

$ 84.88 tax incl.

Discount on quantity :
If buy 10 products you save 6%
If buy 20 products you save 10%
200304V3
8053306651119
Osram
New product

Intelligent interface with the latest generation Zigbee 3.0 protocol and high volatge push (8-230V) to manage trailing edge (phase cut) signal. Via button (Switch), remote control, Application on the phone by Philips Hue. With the Hue system, voice control can be managed by Amazon Alexa, Google Assistant. Complete with package leaflet.

Immediate shipment
1 Product in wharehouse

Availability information

Calcola costi spedizione
Download :

Data_Sheet_SR-ZG9101SAC-HP

Download (320.93k)
Features :
In short :

Intelligent interface with the latest generation Zigbee 3.0 protocol and high volatge push (8-230V) to manage trailing edge (phase cut) signal. Via button (Switch), remote control, Application on the phone by Philips Hue. With the Hue system, voice control can be managed by Amazon Alexa, Google Assistant. Complete with package leaflet.

Description :

It manages dimmable LED bulbs, driver (DALI - Push- trailing edge), halogen and incandescent bulbs, low voltage halogen bulbs with transformer. Product leaflet with programming changes inside the product.

Features:
Input Voltage: 100-240VAC
Output Voltage: 100-240VAC
Output Current: 1.5A max
Size(LxWxH): 45.5x45x20.3mm

Compatible Load Types:
Dimmable LED lamps: 200W (220V) - 100W (110V)
Dimmable LED drivers: 200W (220V) - 100W (110V)
Incandescent lighting HV Halogen lamps: 400W (220V) - 200W (110V)
Low voltage halogen lighting with electronic transformers: 200W (220V) - 100W (110V)

Characteristics:
ZigBee AC phase cut dimmer based on latest ZigBee 3.0 protocol
• 100-240VAC Wide Input and Output Voltage
• Supports resistive loads and capacitive loads
• 1 Channel Output, Up to 400W
• Input and Output with Screw Terminals, Safe and Reliable
• Both leading edge version and trailing edge version are available for choosing, default factory setting is trailing edge
• Enables to control ON/OFF and light intensity of connected triac, dimmable led light or led driver
• ZigBee end device that supports Touchlink commissioning
• Can directly pair to a compatible ZigBee remote via Touchlink without coordinator
• Supports self-forming zigbee network without coordinator and add other devices to the network
• Supports find and bind mode to bind a ZigBee remote
• Supports zigbee green power and can bind max. 20 zigbee green power remotes
• Compatible with universal ZigBee gateway products
• Can be controlled by universal 8-230V input single wire push switch
• Mini Size, Easy to be Installed into a standard 86*86mm wall box
• Radio Frequency : 2.4GHz


Assistance :

Need help ?

Contact us now
Frequently asked
Shipping and price

About availability :

-> PRODUCT WITH QUANTITIES INDICATED -> Products are available in our warehouse and are ready for delivery.

-> NO LONGER IN STOCK -> Product is in out of production or no longer available from the supplier .

-> AVAILABLE ON ORDERING -> The products will be ordered from the supplier and if not indicated the waiting times vary from 5 to 15 days

Can't find your answers or information? For international customers there is an available phone number for your questions: +390541657672 , phone operating from 8.30am - 6.30pm monday - friday.

x

Input voltage100-240 V
Depth in mm21.5
Width in mm48
Length in mm49
Degree of protectionIP20
MaterialPvc
Adjustable powerDimmable
Control systemZigbee
Power output in watts400W
USA JAP compatibleCompatible
