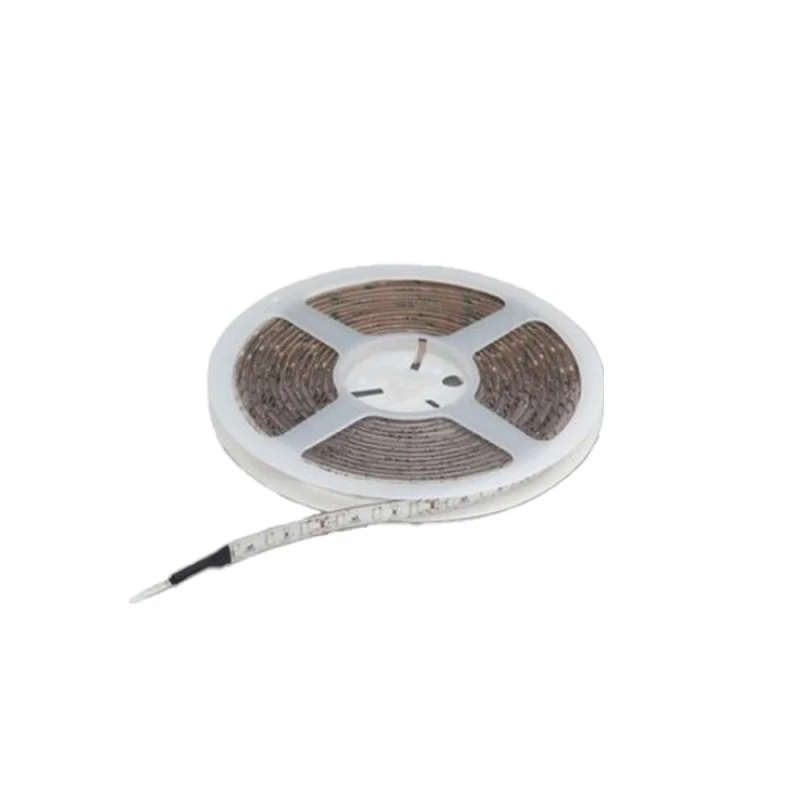

IGuzzini Underscore15 LED Strip 4.8W 12V IP65 waterproof 5 meters

$ 164.93 tax incl.

$ 219.91 tax incl.

25%

Ledstrip 12V
8053288365981
IGuzzini
New product

Product strip led for linear lighting - with white monochrome LEDs - made on a white flexible circuit coated with a layer of silicone; the silicone protection guarantees IP65 protection for the uncut strip.

Delivery time variables
Available only on order

Availability information

Calculate shipping cost
Download :

Data_sheet_M824

Download (184.68k)

Data_sheet_M826

Download (184.83k)

Data_sheet_M827

Download (186.37k)

Data_sheet_M828

Download (184.78k)
Features :
In short :

Product strip led for linear lighting - with white monochrome LEDs - made on a white flexible circuit coated with a layer of silicone; the silicone protection guarantees IP65 protection for the uncut strip.

Description :

The ends of the circuits are fitted with connectors with IP20 protection, therefore we recommend that the strips be used indoors. Supplied in 5-metre long coils wound on suitable supports; the pack includes a connections kit for in line or power supply connections. The back of the circuit is coated with adhesive for rapid application; mounting accessories are available for less simple installations. The strip can be cut at a centre-to-centre distance of 50 mm (minimum 3 LEDs); if intermediate cuts are made, ensure that the cut ends are carefully sealed. LED features: white 4000K colour (the value is an indication only and may vary slightly) 60 LEDs/m flare angle 120° 24W total power supply 12V a maximum of 3 coils can be connected in line.Ballasts to be ordered separately

Installation

rapid installation with adhesive; clips are available for added fixing guarantees (code MWG2: 10 pieces) and rigid aluminium supports (code MWG1: 5 pieces x 1m)

  • LED
  • 4,8W 370lm 2700K CRI 70
  • 4,8W 370lm 3000K CRI 80
  • 4,8W 390lm 4000K CRI 75
  • 4,8W 330lm 6000K CRI 70
  • Luminous Efficacy (real value): 81lm/W
  • Neutral 4000K CRI 75
  • Optic: G - General lighting
  • Adjustability: fixed
  • Material: die-cast aluminium
  • Size (mm): 5000x10x3, Weight (kg): 0.21
  • Environment: Indoor/outdoor

Assistance :

Need help ?

Contact us now
Frequently asked
Shipping and price

About availability :

-> PRODUCT WITH QUANTITIES INDICATED -> Products are available in our warehouse and are ready for delivery.

-> NO LONGER IN STOCK -> Product is in out of production or no longer available from the supplier .

-> AVAILABLE ON ORDERING -> The products will be ordered from the supplier and if not indicated the waiting times vary from 5 to 15 days

Can't find your answers or information? For international customers there is an available phone number for your questions: +390541657672 , phone operating from 8.30am - 6.30pm monday - friday.

x

Input voltage12 VOLT DC
Depth in mm3
Width in mm10
Length in mm5000
Degree of protectionIP65
Energy efficiency classA++ Class
Average hours duration40000
Watt power24 W
Lenght meters5
VariantUnderscore15
Beam angle120°
Weight in Kg0.21
USA JAP compatibleCompatible
