iGuzzini MQ83 Laser Blade Recessed LED Source 21W 3000K 1850lm 48D Dimmable Dali

$ 314.70

$ 419.59

25%

MQ83
8025550388967
IGuzzini
New product

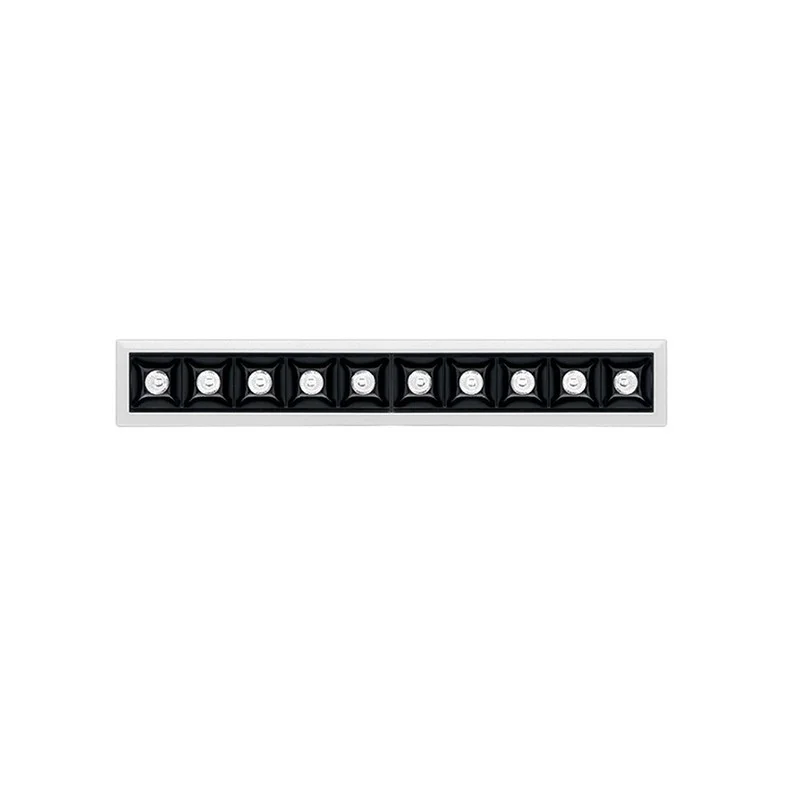

Linear recessed aluminum downlight with high brightness fixed optic, wide beam opening at 48° degrees. Complete with 10 latest generation 3000K warm light LEDs that together emit a luminous flux of 1850 lumens and a color rendering index CRI95. Complete with dimmable power supply with DALI system. Available in four different colors frame: White / White - White / Black - Black / Black - Gray / Black.

Delivery time variables
Available only on order

Availability information

Calculate shipping cost
Download :

Data_sheet_MQ83

Download (270.34k)
Features :
In short :

Linear recessed aluminum downlight with high brightness fixed optic, wide beam opening at 48° degrees. Complete with 10 latest generation 3000K warm light LEDs that together emit a luminous flux of 1850 lumens and a color rendering index CRI95. Complete with dimmable power supply with DALI system. Available in four different colors frame: White / White - White / Black - Black / Black - Gray / Black.

Description :

Miniaturized equipment into rectangular recessed 10 optical elements with LED sources - fixed lenses - flood opening . Main body with radiant surface cast aluminum version with side frame rebate . High-definition optical thermoplastic metallic , integrated set back in the black anti-glare screen ; the structural composition of the optical system avoids the punctiform effect , it allows to obtain a defined light distribution and circular and determines an emission with controlled glare ( UGR < 19 ) . Supplied with electronic control gear connected to the device . warm white LED.


Assistance :

Need help ?

Contact us now
Frequently asked
Shipping and price

About availability :

-> PRODUCT WITH QUANTITIES INDICATED -> Products are available in our warehouse and are ready for delivery.

-> NO LONGER IN STOCK -> Product is in out of production or no longer available from the supplier .

-> AVAILABLE ON ORDERING -> The products will be ordered from the supplier and if not indicated the waiting times vary from 5 to 15 days

Can't find your answers or information? For international customers there is an available phone number for your questions: +390541657672 , phone operating from 8.30am - 6.30pm monday - friday.

x

Input voltage100-240 V
Depth in mm54
Width in mm44
Length in mm281
Degree of protectionIP20
Energy efficiency classA++ Class
MaterialAluminum
Light sourceLED
Average hours duration50000
Adjustable powerwith DALI system
Watt power21 W
Luminous efficacy in lumens1700
Light Temperature3000 K Warm white
Product ColorBLACK / WHITE COLOR
Number of light sources10
Beam angle48°
Mounting diameter in mm274x37
Driver power supplyWith driver
USA JAP compatibleCompatible
Color rendering indexCRI95
