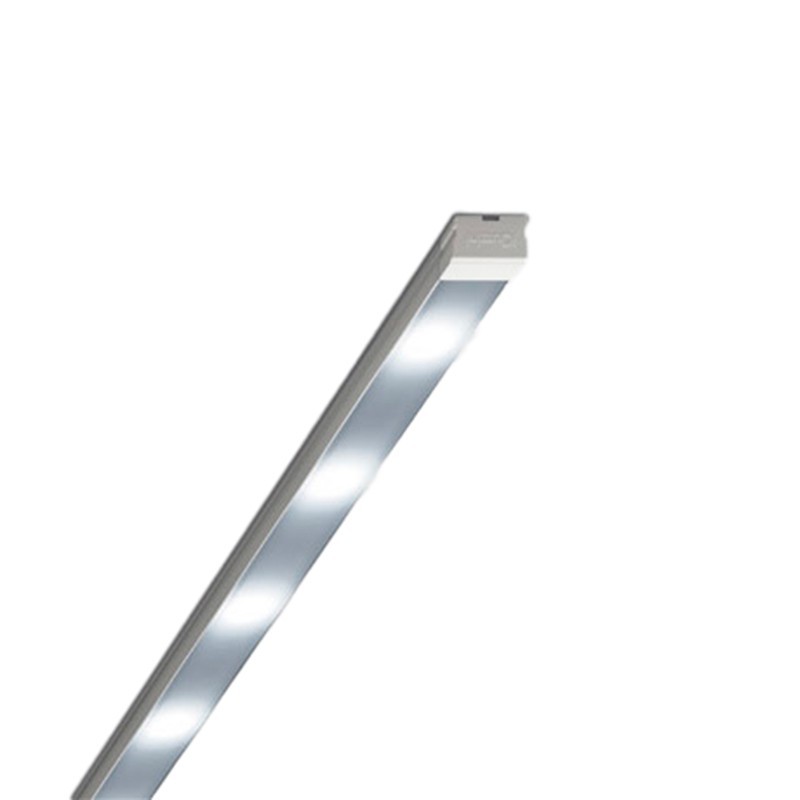

iGuzzini M849 Underscore LED 20W 4000K Profile Linear

iGuzzini M849 Underscore LED 20W 4000K Profile Linear

$ 287.11

$ 358.89


Discount on quantity :
If buy 5 products you save 25%
If buy 10 products you save 28%
New product
  • Temperature 4200k light
  • Power consumption 20W
  • 1592 lumen efficiency
  • 24V DC low voltage input

Immediate shipment
4 Products in wharehouse

Availability information

Calculate shipping cost
Features :
In short :
  • Temperature 4200k light
  • Power consumption 20W
  • 1592 lumen efficiency
  • 24V DC low voltage input
Description :

Code M849
Version with 18-LED module 24V high output (18W total) - white, shades neutral white (4200K) - color rendering index (CRI) 80. Power supply not included.
LED 20W 1592lm
Luminous efficiency (lm / W): 36
4000K CRI80
Dimensions (mm): 1500x26x13, Weight (kg): 0.42

Product-profile drive for linear lighting LED, arranged for surface mounting. High Flux version suitable for lighting display cases, shelves, display corners and outer edges.
Structure in extruded aluminum bar, linear screen in opal polycarbonate diffuser. Side caps and end caps in molded polycarbonate; removing the terminals you can connect directly with later profile thanks to a practical system of quick coupling.

Optics: G - General lighting
Adjustability: Fixed
Group separate electronic
Material: Extruded aluminum
Environment: Indoor IP40
Constant voltage power supplies to be ordered separately

Installation: Fixing snap profile no included clips (MWJ8); the clips are fixed to the installation surface by means of screws and bolts (not included).

For mounting, connections and power use components available to order separate coding. For systems consistent and relevant lengths it is possible to use electronic ballasts DIN: 9910 (72W) - 9911 (96W) - 9912 (240W)

Assistance :

Need help ?

Contact us now
Frequently asked
Shipping and price

About availability :

-> PRODUCT WITH QUANTITIES INDICATED -> Products are available in our warehouse and are ready for delivery.

-> NO LONGER IN STOCK -> Product is in out of production or no longer available from the supplier .

-> AVAILABLE ON ORDERING -> The products will be ordered from the supplier and if not indicated the waiting times vary from 5 to 15 days

Can't find your answers or information? For international customers there is an available phone number for your questions: +390541657672 , phone operating from 8.30am - 6.30pm monday - friday.


Input voltage24 VOLT DC
Depth in mm13
Width in mm26
Length in mm1500
Degree of protectionIP40
Surface finishSILVER
Average hours duration60000
Adjustable powerDimmable
Watt power20 W
Luminous efficacy in lumens1592
Light Temperature4000 K Neutral White
Product ColorGRAY COLOR
Number of light sources20
Complete with bulbBulb included
