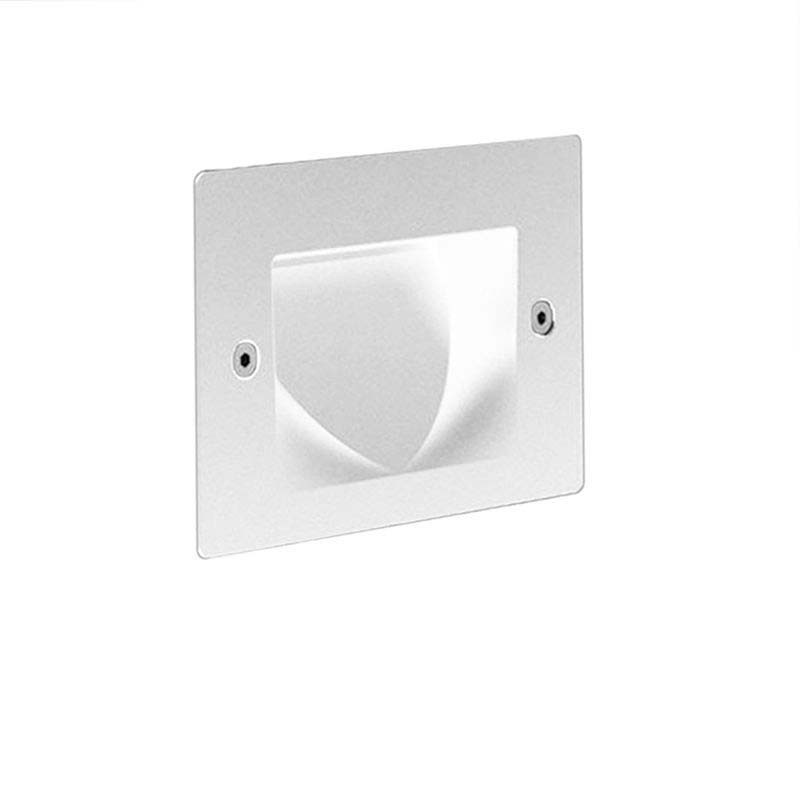

Cariboni FIN XS LED 4W 300lm 3000K Marker Wall Recessed
  • Cariboni FIN XS LED 4W 300lm 3000K Marker Wall Recessed
  • Cariboni FIN XS LED 4W 300lm 3000K Marker Wall Recessed
  • Cariboni FIN XS LED 4W 300lm 3000K Marker Wall Recessed
  • Cariboni FIN XS LED 4W 300lm 3000K Marker Wall Recessed
  • Cariboni FIN XS LED 4W 300lm 3000K Marker Wall Recessed
  • Cariboni FIN XS LED 4W 300lm 3000K Marker Wall Recessed
Cariboni FIN XS LED 4W 300lm 3000K Marker Wall Recessed
Cariboni FIN XS LED 4W 300lm 3000K Marker Wall Recessed Cariboni FIN XS LED 4W 300lm 3000K Marker Wall Recessed Cariboni FIN XS LED 4W 300lm 3000K Marker Wall Recessed Cariboni FIN XS LED 4W 300lm 3000K Marker Wall Recessed Cariboni FIN XS LED 4W 300lm 3000K Marker Wall Recessed Cariboni FIN XS LED 4W 300lm 3000K Marker Wall Recessed

Cariboni FIN XS LED 4W 3000K Marker Wall Recessed White


$72.33 Save 25%
instead of $96.44
The product can be ordered
COD 06FX1B2397D Horizontal, LED 4W 300lm 3000K, Can be installed in blocks 503, Included Drivers in 'device, Degree of protection IP65, Power consumption 4W. Read more ...
local_shipping Shipped in 7-21 days

Quantity

payments You can pay in installments with PAYPAL OR SCALAPAY
Description
Product Information:

06FX1B2397D LED 4W 300 lm 3000K

Materials and finishings
Body: die cast aluminium alloy painted in white color RAL9003 after a chromium plating treatment. The closure screen is in polycarbonate. External screws in stainless steel AISI304, internal screws made of chrome plated and galvanised steel. Between the screws and the parts of the floodlight having different electrochemical potential there is a layer of grease, in order to avoid any problem of blockage.
Electrical features and components
LED 300lm 3000k.
IP 65. CL. II.
Electrical compartment, inside the fitting. For the connection driver/led plate unipolar flexible cables 1x0, 61mm2 AWG 22, with double silicone rubber isolation.
For the connection tot he power supply: 1 M20 cable gland in isolating material for cables D. 8-12mm.
Gaskets: made of EPDM, printed by injection, suitable to compensate the dilatations due to normal use.
Optical features
White emitters 3000°K, positioned by means of pick and place system, MCPCB, on an electrical circuit, which disperses heat in order to grant an optimal working of the system. Optics: large beam.
Istallation and maintenance operations
Each extraordinary maintenance operation can be carried out by removing the back cover, which is fastened to the body by means of 2 screws which aren t accessible once the fitting is installed, in order to prevent any vandalism.
Dimensional features
H 108 mm, La 71 mm, P 51 mm.
Weight : 0,3 kg

100% original product by

Details:

Data sheet

Barcode:
8058774343573
Reference
06FX1B2397D
Input voltage
220-240 V
Depth in mm
51
Width in mm
71
Length in mm
108
Degree of protection
IP65
Material
Aluminum
Light source
LED
Average hours duration
60000
Watt power
4 W
Light Temperature
3000 K Warm white
Product Color
WHITE COLOR
Number of light sources
1
Mounting diameter in mm
106x75
Driver power supply
With driver
Compatible current
EU-AUD-USA-UK-JAP
For recessed boxes
503 model
