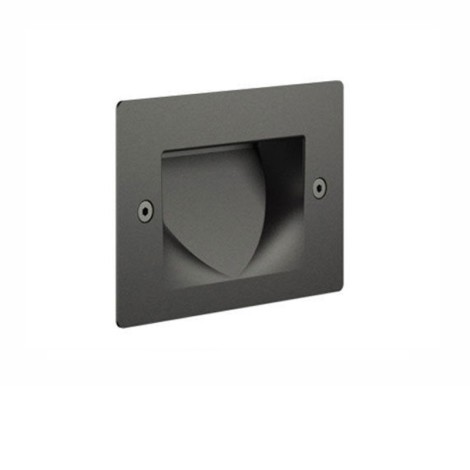

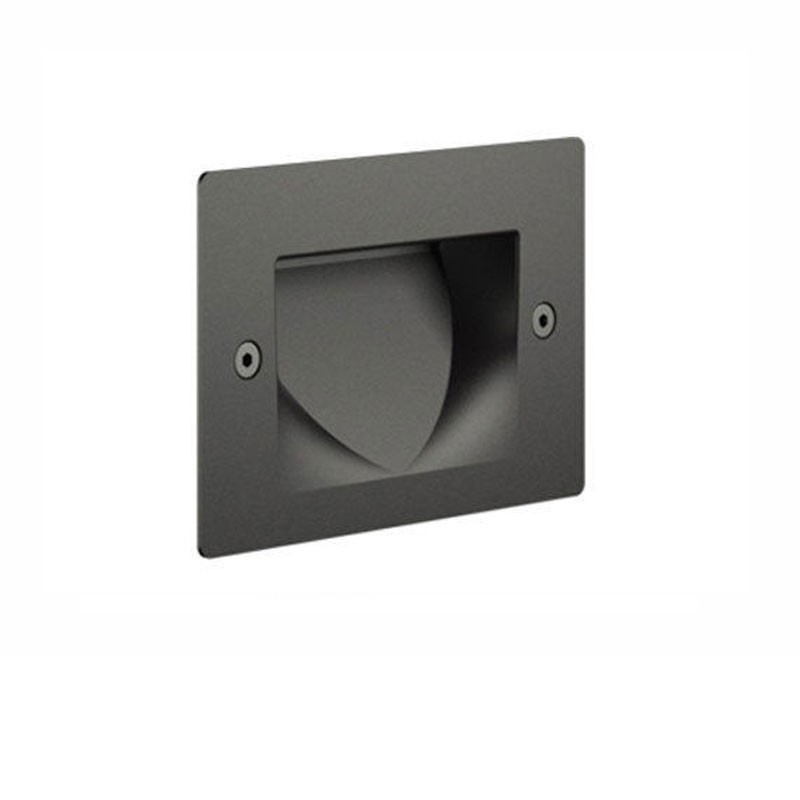

Cariboni FIN XS LED 4W 300lm 3000K Marker Wall Recessed Spotlight Black

$ 76.03 tax incl.

$ 101.38 tax incl.

25%

06FX1B2397C
8058774343566
Cariboni
New product
  • COD 06FX1B2397C Horizontal
  • LED 4W 300lm 3000K
  • IP65

Immediate shipment
14 Products in wharehouse

Availability information

Calcola costi spedizione
Download :

Data_sheet_06FX1B2397C

Download (191.86k)
Features :
In short :
  • COD 06FX1B2397C Horizontal
  • LED 4W 300lm 3000K
  • IP65
Description :

06FX1B2397C LED 4W 300 lm 3000K

Materials and finishings
Body: die cast aluminium alloy painted in dark grey color sablé 100 noir after a chromium plating treatment. The closure screen is in polycarbonate. External screws in stainless steel AISI304, internal screws made of chrome plated and galvanised steel. Between the screws and the parts of the floodlight having different electrochemical potential there is a layer of grease, in order to avoid any problem of blockage.
Electrical features and components
LED 300lm 3000k.
IP 65. CL. II.
Electrical compartment, inside the fitting. For the connection driver/led plate unipolar flexible cables 1x0, 61mm2 AWG 22, with double silicone rubber isolation.
For the connection tot he power supply: 1 M20 cable gland in isolating material for cables Ø8-12mm.
Gaskets: made of EPDM, printed by injection, suitable to compensate the dilatations due to normal use.
Optical features
White emitters 3000°K, positioned by means of ”pick and place” system, MCPCB, on an electrical circuit, which disperses heat in order to grant an optimal working of the system. Optics: large beam.
Istallation and maintenance operations
Each extraordinary maintenance operation can be carried out by removing the back cover, which is fastened to the body by means of 2 screws which aren’t accessible once the fitting is installed, in order to prevent any vandalism.
Dimensional features

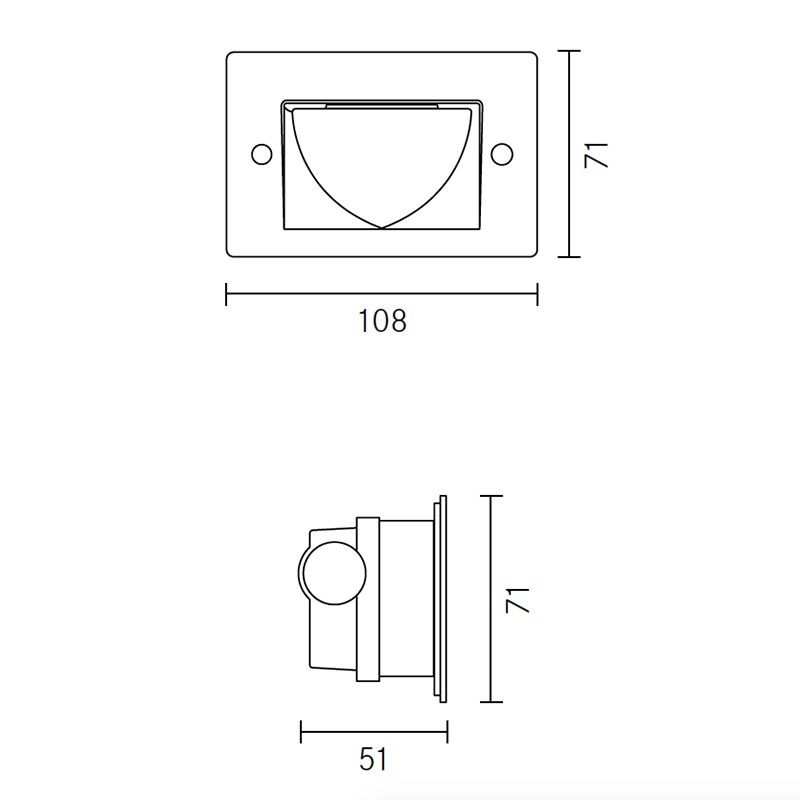

H 108 mm, La 71 mm, P 51 mm.
Weight : 0,3 kg


Assistance :

Need help ?

Contact us now
Frequently asked
Shipping and price

About availability :

-> PRODUCT WITH QUANTITIES INDICATED -> Products are available in our warehouse and are ready for delivery.

-> NO LONGER IN STOCK -> Product is in out of production or no longer available from the supplier .

-> AVAILABLE ON ORDERING -> The products will be ordered from the supplier and if not indicated the waiting times vary from 5 to 15 days

Can't find your answers or information? For international customers there is an available phone number for your questions: +390541657672 , phone operating from 8.30am - 6.30pm monday - friday.

x

Input voltage220/240 V 50/60 Hz
Depth in mm51
Width in mm71
Length in mm108
Degree of protectionIP65
MaterialAluminum
Watt power4 W
Luminous efficacy in lumens300
Light Temperature3000 K Warm white
Product ColorBLACK COLOR
Driver power supplyWith driver
For recessed boxes503 model
